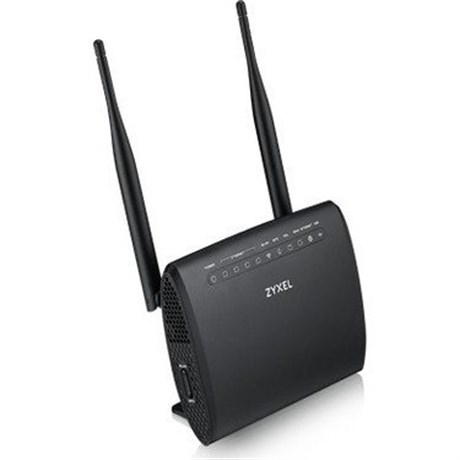

ZYXEL VMG3312-T20A 4 PORT LAN 300MBPS N300 2.4GHZ WLAN (KABLOSUZ) VDSL MODEM

B02888 | 2332712006062

ZYXEL VMG3312-T20A 4 PORT LAN 300MBPS N300 2.4GHZ WLAN (KABLOSUZ) VDSL MODEM

– GARANTİ SÜRESİ : 24 AY RESMİ DİSTRİBÜTÖR GARANTİLİDİR

Teknik Özellikler

Kablosuz Standart

• 802.11 b/g/n 2.4 GHz

VDSL Uyumluluğu

• ITU-T G.993.2 VDSL2, band plan 997, 998,
• VDSL profiles (8a/b/c/d, 12a/b, 17a, 30a),
• ITU-T G.993.5 (G.vector),
• ITU-T G.998.4 (G.inp): up to 16 symbols,
• SRA (Seamless Rate Adaptation),
• UPBO (Upstream Power Back-off),
• PhyR (Physical Layer Retransmission),
• TR-114

ADSL Uyumluluğu

• ITU-T G.992.1 (G.dmt) Annex A,
• ITU-T G.992.2 (G.lite) Annex A,
• ANSI T1.413,
• ITU-T G.992.3 ADSL2,
• ITU-T G.992.5 ADSL2+,
• ITU-T G.998.4 (G.inp),
• Reach-Extended ADSL (RE ADSL),
• SRA (Seamless Rate Adaption),
• PhyR (Physical Layer Retransmission),
• TR-067/100

WLAN

• IEEE 802.11 b/g/n compliance,
• Frequency: 2.4 GHz,
• Data rate: 300 Mbps,
• WPA/WPA2,
• WPA2-PSK with AES,
• WPA/WPA2-PSK with AES/TKIP+AES,
• WEP data encryption 64/128 bit,
• Wireless Protected Setup (WPS),
• Multi SSID (up to 4) and hidden SSID support

USB

• File sharing,
• 3G Dongle

Köprü/Yönlendirici

• PPPoE (RFC2516),
• PPPoA (RFC2364),
• DHCP client/server/relay,
• DHCP option 60/61/125,
• DNS Proxy/Static DNS/DNS from ISP,
• NAT (Enable/Disable),
• Fullcone NAT (Enable/Disable),
• IGMP Proxy (Enable/Disable),
• IGMP v1, v2, v3,
• IEEE 802.1d transparent bridge,
• NAT server (Port forwarding),
• Static route/policy routing,
• IP protocol (IPv4/IPv6)

VLAN/QoS

• VLAN Active (Enable/Disable)/802.1p (0-7)/802.1q (1-4094),
• Support flexible traffic classification,
• TCP/UDP port range,
• Ether type (NA/IP/ARP/PPPoE Discovery/PPPoE Session/802.1Q/ IPv6),
• Source & Destination address/ subnet mask/port range/MAC/MAC mask,
• Predefine service,
• IP protocol (TCP/UDP/ICMP/IGMP/User defined),
• DHCP OPT (60/61/77/125),
• Packet length,
• 6-bit DiffServ code point (DSCP, RFC 2474),
• TCP ACK

Güvenlik Duvarı & Güvenlik

• MAC filter,
• Scheduler rule,
• IPv4/IPv6 Firewall (Sateful packet inspection),
• Parental control,
• ACL rule support: (32 ACL rules),
• DoS protection

Yönetim
